Epson® Pro Cinema Projectors have one goal - to faithfully reproduce the source material the way the artist intended. This single thought is what guided our Engineering Teams to develop a next-generation home theatre projector. And what they came up with, could possibly be our best Pro Cinema Projector ever.
Introducing the Epson Pro Cinema LS12000 4K PRO-UHD®1 3-Chip 3LCD Laser Projector.
Utilizing an all-new Laser Array Light Source, the Pro Cinema LS12000 is capable of displaying a 4K picture on screen up to an astonishing 2,700 lumens for both colour and white brightness2. And, when driven by a proprietary Epson ZX Picture Processor for powerful picture processing, the Pro Cinema LS12000 produces incredible brightness, colour accuracy, and image detail to faithfully display all your content the way it was meant to be seen.
4K PRO-UHD1
Advanced pixel-shifting technology works in parallel with three individual high-definition LCD chips to produce an exceptionally sharp 4K picture without sacrificing picture brightness
Precision Shift Glass Plate Technology
Unique digitally controlled Precision Shift Glass Plate precisely refracts pixel-light to display a 3840 x 2160, 8.29-million-pixel image for an exceptionally sharp and clear 4K picture
Epson ZX Picture Processor
Our most advanced video processing technology to date, the proprietary 32-bit Epson ZX Picture Processor handles real-time colour, contrast, HDR3, frame interpolation and resolution enhancement to faithfully reproduce the source material the way it was intended to be shown
Laser Array Light Source
True multi-array laser diodes produce an ideal light source to power the unique 3-Chip 3LCD Projector Engine for quick turn-on, incredible picture brightness, black contrast and colour accuracy
High Picture Brightness
Impressive 2,700 lumens of colour and 2,700 lumens of white brightness2 for an exceptional picture in virtually any theatre environment – even in rooms with ambient light
True 3-Chip 3LCD Projector Engine
Advanced 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB colour signal for every frame. This allows for outstanding colour gamut while maintaining excellent brightness without any rainbowing or colour brightness issues seen with other projection technologies
Impressive HDR
Full 10-bit HDR2 color processing accepting 100% of the HDR source information to faithfully reproduce HDR, HDR10+ and HLG (Hybrid Log Gamma) content for an exceptional visual performance. Real-time HDR curve adjustment allows for 16 steps of control to fine-tune the HDR performance regardless of the content
120 Hz Refresh Rate
Refresh rates up to 120 Hz allow for smoother motion for supported content while providing the option for impressive Frame Interpolation for content below 120 Hz
Epson UltraBlack™ Technology
Taking full advantage of the Laser Array Light Source, Epson created a proprietary compensation filter that controls the polarization of light itself. This allows Epson to suppress any stray light within the signal and dramatically enhance the picture contrast to produce an infinite Dynamic Contrast Ratio exceeding 2,500,000:1
Epson VRX Cinema Lens
Designed for zero-light leakage, the Epson VRX Cinema Lens utilizes a proprietary 15-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity. This could be one of the best projector lens technologies Epson has ever developed
3-Axis Motorized Lens Shift
Making installation simple, you can precisely shift the lens up to +/- 96% horizontally and up to +/- 47% vertically without any loss in picture distortion or clarity. You can also set the zoom and focus, then store all the settings in one of ten lens memory presets
Real-Time Adaptive Scene Correction
Powered by the Epson ZX Picture Processor, the user has the option to automatically adjust the picture quality based upon the scene information itself. This provides a simple way to get impressive colour and contrast, regardless of the content being displayed
HDMI® 2.1
Supports the full 48 Gbps bandwidth for accepting 4K HDR3 content up to 120 Hz. Along with ARC and eARC support, this allows for outstanding compatibility with the latest AV receivers and next-generation gaming consoles
Epic for Gaming
Gaming up to 4K at 120 frames per second, along with input lag times below 20 ms, allow for serious gamers to take full advantage of the latest generation of gaming consoles and even higher-end gaming PCs
ISF® Certified
The Imaging Science Foundation has been setting the display standards since 1994 and has been dedicated to improving the quality of electronic imaging. Epson shares this passion for image quality and has developed technologies to allow an ISF Certified Technician to professionally calibrate the Epson Pro Cinema LS12000 projector to the highest level of image quality
1 4K Resolution Enhancement Technology shifts each pixel to produce an image on screen, up to the stated specification.

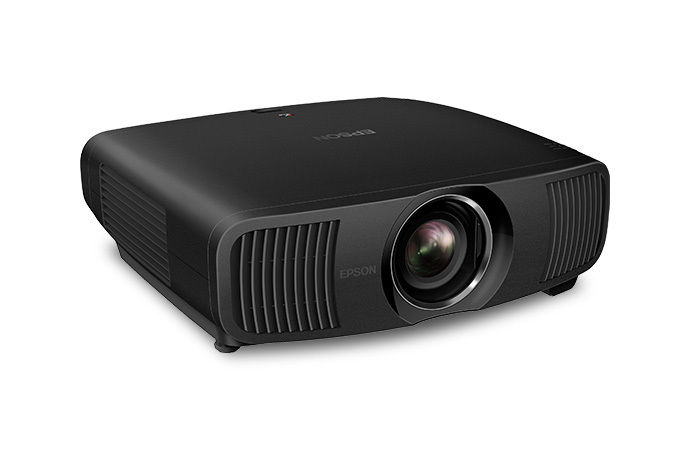

Epson Pro Cinema LS12000 4K PRO-UHD Laser Projector
SPECIFICATIONS
Projection System Epson 3LCD
Chip Design (Architecture) 3-Chip
Light Source True Laser Diode Array
Projection Method Front, Front-Ceiling, Rear, Rear-Ceiling
Product Color Black
Driving Method Poly-silicon TFT Active Matrix, 0.74"- wide panel, 12-bit
Output Resolution 4K PRO-UHD1 3840 x 2160 (dual-axis: 1920 x 1080)
Maximum Input Resolution 4096 x 2160
Maximum Refresh Rate 120 Hz
Supported Resolutions 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
Native Aspect Ratio 16:9 widescreen
Resize Aspect Ratio Support
- 1.9:1 (4096 x 2160)
- 21:9 (2560 x 1080)
- 4:3 (1600 x 1200)
- 9:6 (720 x 480)
- 5:4 (720 x 576)
- compatible with Normal, Full or Zoom Modes
Color Brightness3 Color Light Output: 2,700 lumens
White Brightness3 White Light Output: 2,700 lumens
Contrast Ratio Up to and over 2,500,000:1, Auto Iris on
White Balance 14-point temperature adjustment
Color Reproduction Full-color (up to 1.07 billion colors)
Size (Projected Distance) 50" to 300" (at 58" to 62'4")
Keystone Correction Vertical/Horizontal: ± 30 degrees
HDR Color Processing Full 10-bit
Epson ZX Picture Processor Full 12-bit
Light Source Life5
- Normal Mode: Up to 20,000 hours
- Medium Mode: Up to 20,000 hours
- Eco Mode: Up to 20,000 hours
PROJECTION LENS
Epson VRX Lens 15-element precision glass structure (AGS)
Type Powered focus/optical zoom/lens position
F-number 2.0 – 3.0
Focal Length 22.5 – 46.7 mm
Zoom Ratio 1 – 2.1
Throw Ratio Range 1.35 – 2.84
Lens Shift
- Vertical: -96.3% to +96.3% (H center, powered)
- Horizontal: -47.1% to +47.1% (V center, powered)
Lens Cover Powered, slide lens shutter
INTERFACES
Terminal Inputs:
- 2 x HDMI® 2.1 (HDCP 2.3); one supporting eARC/ARC
- 1 x USB Type A (for optical HDMI cable, 300 mA maximum power supply only)
- 1 x USB Type-A 5 V, 2.0 A for power and firmware
- 1 x Mini USB (service only)
- 1 x LAN (RJ45)
- 1 x RS-232c
Terminal Outputs:
1 x Trigger out (On, Off) 12 V DC, 200 mA maximum
What's in the box:
- Pro Cinema LS12000 projector
- Ceiling mount
- Cable cover
- Power cord
- Remote control with (2) AA battery
- Quick Setup Guide
Dimensions including feet:
20.5"W x 7.6"H x 17.6"D
Weight:
28.0 Lbs
HDR2 Adjustment:
16 steps, real-time
Colour Modes:
Dynamic, Vivid, Bright Cinema, Cinema, Natural, B&W Cinema
Aspect Adjustment:
Yes (Auto / Full/Zoom / Anamorphic Wide / Horizontal Squeeze)
Anamorphic Lens Option:
Compatible with third party; Anamorphic Lens Kit sold separately
Frame Interpolation:
Input up to 4K at 60 Hz, output up to 4K at 120 Hz
Fan Noise:
22 – 30 dB
Parental Controls:
Power Button Lock hinders projector from being turned on without
parental supervision
Specifications are subject to change without notice.
